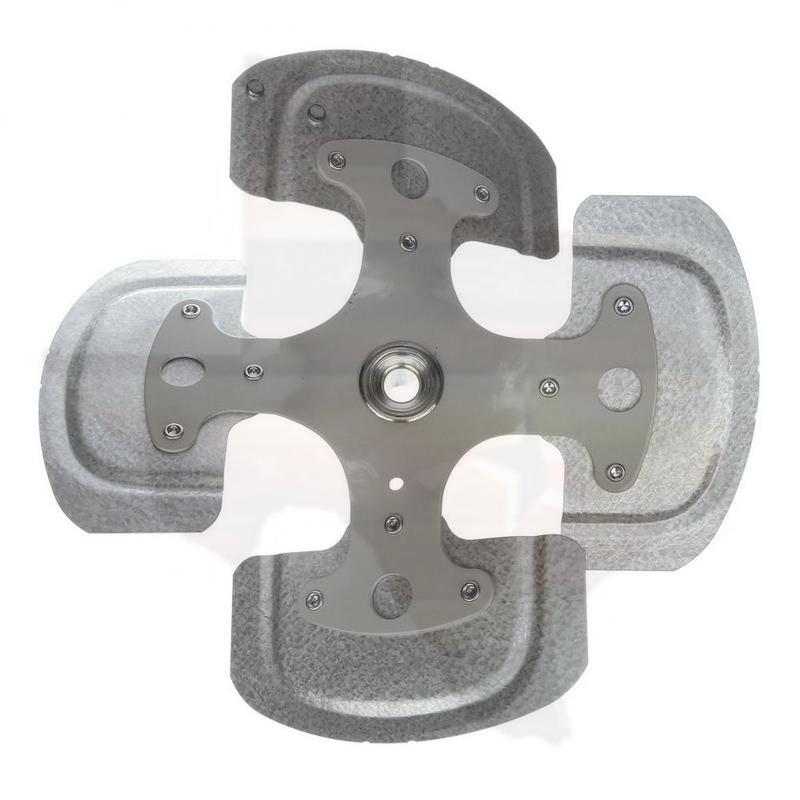

Which Way Do My Convection Fan Motor Blades Push Air?
If you’ve ever replaced a fan motor or fan blade in your smoker or convection unit, you’ve probably asked yourself an important question:
Which direction should the fan blades push air?
Getting this right is critical. Proper airflow ensures even cooking, stable temperatures, efficient smoke circulation, and long equipment life. Let’s break down how the airflow works and which direction each fan blade should move air.
Understanding the Two Fan Systems
Most convection smokers and similar units use two separate fan systems, each serving a different purpose:
-
Interior circulation fan (convection fan)
-
Exterior motor cooling fan
Although they may look similar, they do very different jobs — and they push air in different directions.
Interior Circulation Fan: Air Moves Toward the Meat Compartment Doors
The interior circulation fan blade is responsible for moving hot air and smoke throughout the cooking chamber.
Its airflow direction should:
👉 Blow air toward the meat compartment doors
Why This Direction Matters
When the fan pushes air toward the doors:
-
Heat distributes evenly throughout the chamber
-
Smoke circulates properly around the product
-
Hot and cold spots are minimized
-
Cooking times remain consistent
-
Flavor penetration improves
This continuous circulation creates a convection effect, which is what ensures your food cooks evenly from all sides.
If installed backward, the unit may still run — but you’ll likely experience:
-
Uneven cooking
-
Poor smoke distribution
-
Temperature inconsistencies
Exterior Motor Cooling Fan: Air Moves Toward the Convection Motor
The exterior motor cooling fan blade serves a completely different purpose.
Its airflow direction should:
👉 Push air toward the convection motor
Why This Direction Matters
The cooling fan prevents overheating by directing airflow over the motor housing. Proper airflow:
-
Extends motor life
-
Prevents overheating shutdowns
-
Protects internal electrical components
-
Maintains consistent performance
If the cooling fan is reversed, the motor may:
-
Run hotter than designed
-
Experience premature wear
-
Fail earlier than expected
This small detail can have a big impact on equipment longevity.
How to Verify Blade Direction
If you’re unsure whether the blade is installed correctly, here are a few tips:
1. Check the Blade Pitch
Fan blades are angled. The curve or “cup” of the blade typically indicates the direction air will move.
2. Look for Directional Markings
Some fan blades or motors include small arrows indicating rotation direction or airflow direction.
3. Perform a Quick Airflow Test
Carefully power the unit on and feel the airflow direction:
-
Inside chamber → air should move toward the doors
-
Outside cooling fan → air should blow toward the motor
(Always use caution and follow safety guidelines when testing.)
Why Proper Airflow Is So Important
Correct airflow affects:
-
Cooking performance
-
Smoke consistency
-
Temperature stability
-
Equipment lifespan
-
Energy efficiency
Even a simple blade replacement can impact your entire cooking system if installed incorrectly.
Quick Summary
Here’s the simple rule:
-
Interior circulation fan: blows air toward the meat compartment doors
-
Exterior motor cooling fan: pushes air toward the convection motor
If you’re replacing a motor or blade, always double-check orientation before final assembly.
Proper airflow is one of the most overlooked — yet most important — factors in convection cooking performance. When your fan blades are installed correctly, your system runs smoother, cooks more evenly, and lasts longer.
If you’re ever unsure, consult your unit’s service manual or reach out to technical support for guidance before operating the equipment.
