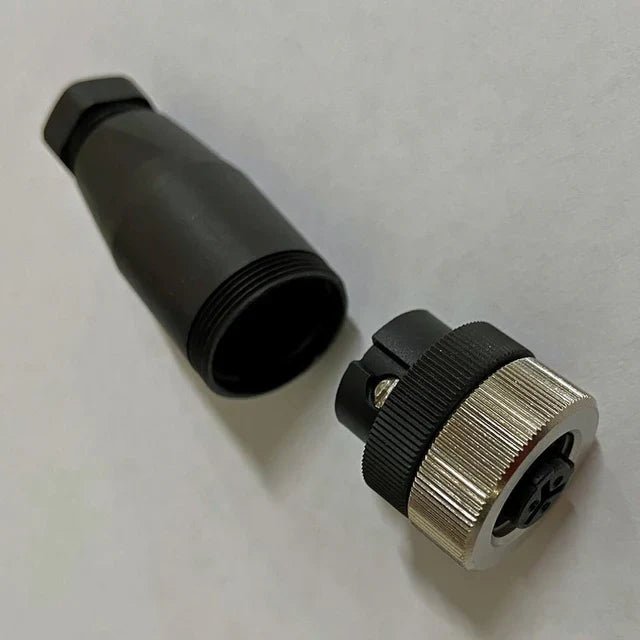

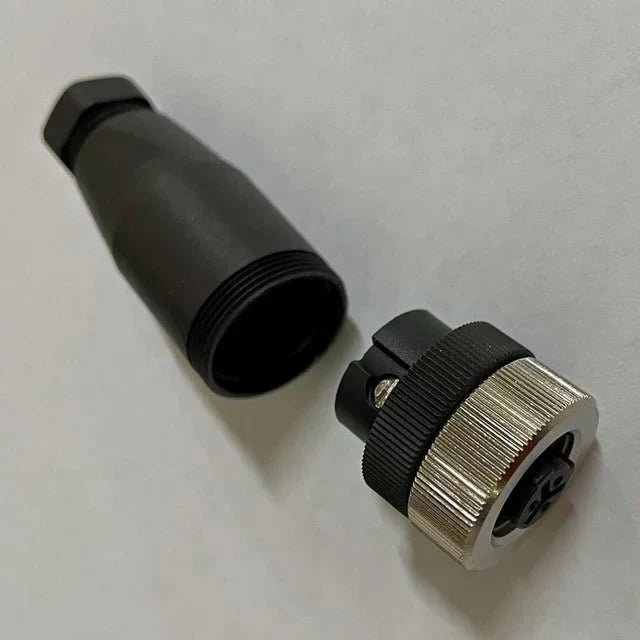

Wire Harness Connector (TURCK # MF3131-0) Installation Instruction. This connector is attached to the wire harness on the Oven Side and the mating connector is on the proximity switch.
1. Pull the door proximity switch wires out of the oven through the hole in the liner for the door proximity switch. The wires should be marked; Com, NO, & NC.
2. Unscrew the two halves of the wire connector.
3. Loosen the strain relief nut on the half of the connector with the tapered end.
4. Slide the tapered half of the connector over the three wires, Com, NO,& NC, the strain relief goes on first. Note: wire NO may not be in the wire harness.
5. Connect wire marked COM to terminal #2 of the connector.
6. Connect wire marked NO to terminal #1 of the connector
7. Connect wire marked NC to terminal #3 of the connector.
8. Screw the two halves of the connector together.
9. Tighten the strain relief nut.
