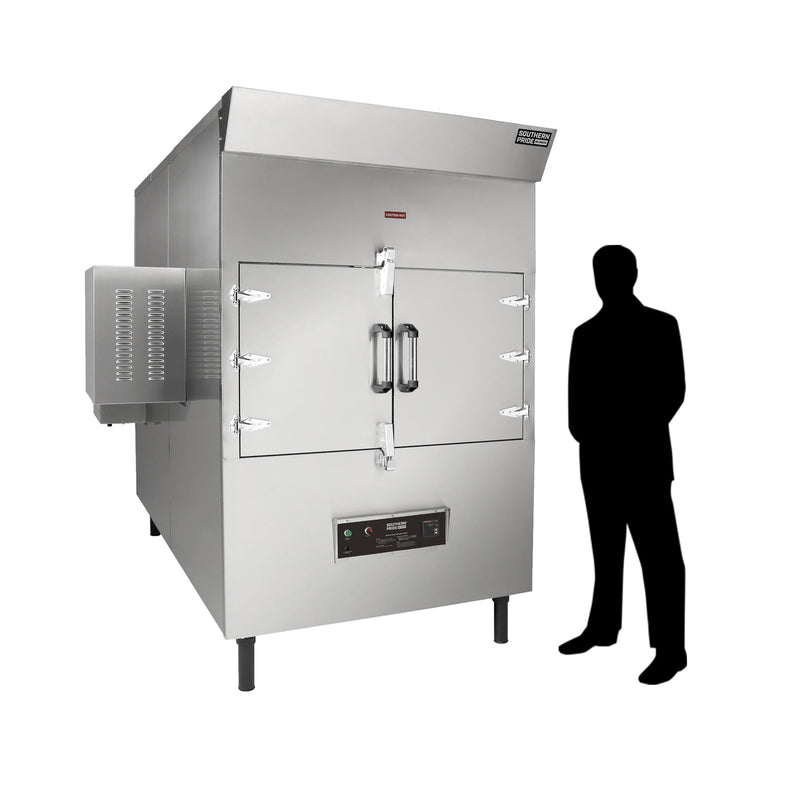

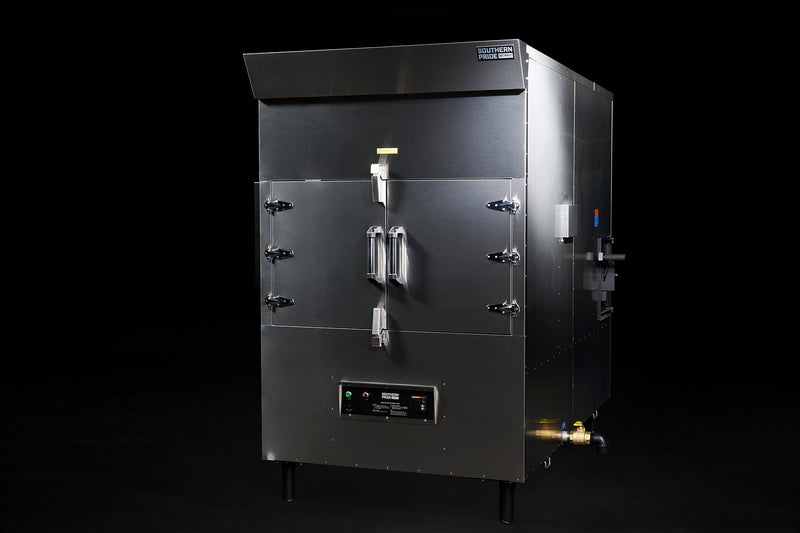

Home Featured Smokers Ahumador de asador a gas Southern Pride SPK-1400

Especificaciones de gases
* Gas ​​natural o LP
* Quemador de 150,000 BTU (44KW)
* Entrada de gas de 1/2" (NPT)
* Presión de la línea de suministro
Natural - 4.5" WC min - 10.0" WC max (11.2 - 26.5 mbar)
LP - 11,0" CA mín. - 13,0" CA máx. (27,4 - 32,4 mbar)

especificaciones electricas
* 120 voltios CA, 60 hercios, monofásico, cableado de 15 amperios con enchufe NEMA 5-15P -o-
* Cableado de 230 voltios CA, 50 hercios, monofásico, 15 amperios sin enchufe

Especificaciones de ventilación
* El ahumador debe ventilarse de acuerdo con el Manual del Propietario y la instalación debe cumplir con todos los códigos locales y nacionales pertinentes y de manera aceptable para la autoridad competente.

Especificaciones del fumador
* Dimensiones exteriores del ahumador: 73 7/8" de ancho x 107 3/4" de profundidad x 86" de alto (1876 x 2738 x 2185 mm)
* Peso del fumador: 2400 lb (1089 kg)

Capacidades aproximadas de fumador:

Lomo de Cerdo (8-10 lbs)(3.6 - 4.5 kg) cada uno.....108 piezas
Costillas St. Louis (2.75 lbs)(1.2kg) cada una..........120 piezas
Pollo entero (3-4 lbs)(1.4 - 1.8 kg) cada uno.126 piezas
Pechuga de res (12-15 lb) (5,4 - 6,8 kg) cada una... 36 piezas

Las capacidades variarán según las especificaciones del producto y el método de carga.

Optional Features

Programmable digital cook and hold control panel

The cook and hold digital thermostat allows for cook temperature selection between 140° to 325°F (60° to 163°C), cook time, and hold temperature.

The rotisserie can be advanced by pressing the up button on the control, or stepping on the rotisserie foot pedal for hands-free operation.

Mirror image

Includes firebox and drain on left side; drive system and service bay on right side.

Glass product doors

Tempered glass in the center of each product door allows for the viewing of the product during the cook cycle without opening the doors.

Includes a manual light switch on the control panel to activate the interior light without opening the product door.

Trailer mount legs

Required for trailer mounting to customer supplied trailer.

Stainless steel product racks

The standard nickel chrome product racks can be upgraded to stainless steel product racks.

Optional rack systems
In lieu of the standard rack system, the following rack systems are available:

(5), 5-tier rack hangers that hold a maximum of (25), 18" x 42" (457 x 1067mm) product racks with 3 1/2" (89mm) spacing

(5), 4-tier rack hangers that hold a maximum of (20), 18" x 42" (457 x 1067mm) product racks with 4 11/16" (119mm) spacing

Smoke extractor damper

Activates automatically when the product doors are opened, and used in conjunction with an exhaust fan (not supplied) to evacuate the smoke from the smoker prior to opening the product doors.

Product shelf

12" deep shelf for easier product loading and unloading.

Lockable control panel cover

Prevent tampering of control settings.

Delivery casters/working height locking casters (set of 4)

Used to lower the smoker and allow for easier maneuvering during shipping and installation.

Through the wall insulation kit

Used to put between the smoker and the wall when installing the smoker directly through a wall constructed of combustible material.

Through the wall stainless steel trim kit

Covers the gap between the smoker and the wall on all four sides of the smoker.  Kit is for one side of building, two kits can be used for interior and exterior of the building.

Mobile rack retainer pins and clips

Stainless steel pins and clips are inserted through each side of the product rack hangers and product racks to hold product racks in place during transit. Available for 12" and 18" rack system.

VSP eyebrow hood system

Custom vent hood that attaches directly to the smoker and is ducted out of the building to capture the smoke from the smoker when the product doors are opened.

  • Pork Butts (8-10 lbs)(3.6 - 4.5 kg) each.....108 pieces
  • St. Louis Ribs (2.75 lbs)(1.2kg) each..........120 pieces
  • Whole Chicken (3-4 lbs)(1.4 - 1.8 kg) each.126 pieces
  • Beef Brisket (12-15 lbs)(5.4 - 6.8 kg) each..36 pieces

Capacities will vary based on product specifications and loading method.

All in-stock units ship via UPS from Orange, TX. Typical transit time 1–5 business days depending on your location and selected service. Large units (SP-700, SPK-1400, mobile units) may require freight — we will contact you to arrange delivery.

Will Call is also available at our warehouse: 1812 N 16th St, Orange, TX 77630 — Mon–Fri 9AM–6PM (closed 1–2PM).

Southern Pride of Texas offers free technical support on all Southern Pride equipment — whether you bought it from us or not. Call us at (409) 886-8626 or visit our Support Center for manuals, service bulletins, and exploded view diagrams.
