- Control - Digital thermostat (allows for cook temperature selection only, 140° to 325°F (60° to 163°C))
- Rack hangers - (4) 5-tier, 3-1/2” (89mm) spacing, hanger assemblies
- Product racks - (20) 18” x 22” (457 x 559mm) nickel chrome plated
- Heat source - 125,000 BTU (37KW) burner with electronic pilot
OPTIONAL FEATURES (PLEASE CONTACT FOR PRICING):
- Programmable digital cook and hold control (140° to 325°F)(60° to 163°C)
- Mirror image (left side - firebox and drain; right side - drive system and service bay, product loading door hinges)
- Glass product display door upgrade
- Trailer mount legs (required for trailer mounting to customer supplied trailer)
- Stainless steel product rack upgrade, (20) 18” x 22"(457 x 559mm)(substitution of standard chrome racks)
- Smoke extractor damper Part# 593004
- Mobile evacuation system (Fan & Curb) Part# 597067
- MLR series VSP eyebrow hood system (see VSP Series, page 13, for standard features and options) 597064
- Product shelf Part# 993011
- Lockable control panel cover Part# 291017
- Delivery casters / working height locking casters (set of 4
- Through the wall insulation kit (without VSP eyebrow hood system) Part# 087003
- Through the wall stainless steel trim kit (without VSP eyebrow hood system) Part# 993015
- Mobile rack retainer pins and clips
Convection air system
The 125,000 BTU (37KW) burner heats the smoker cabinet and ignites the 2-3 fireplace size logs in the firebox to obtain the desired flavor, aroma, and texture.
The convection fan draws the smoke from the firebox and circulates the smoke throughout the smoker cooking cabinet.
The Subterthermic® front or rear flue increases the smoke flavor of the product, increases the heat efficiency, and reduces the wood usage.
The entire smoker interior is stainless steel ensuring easy cleaning and decades of trouble-free use.

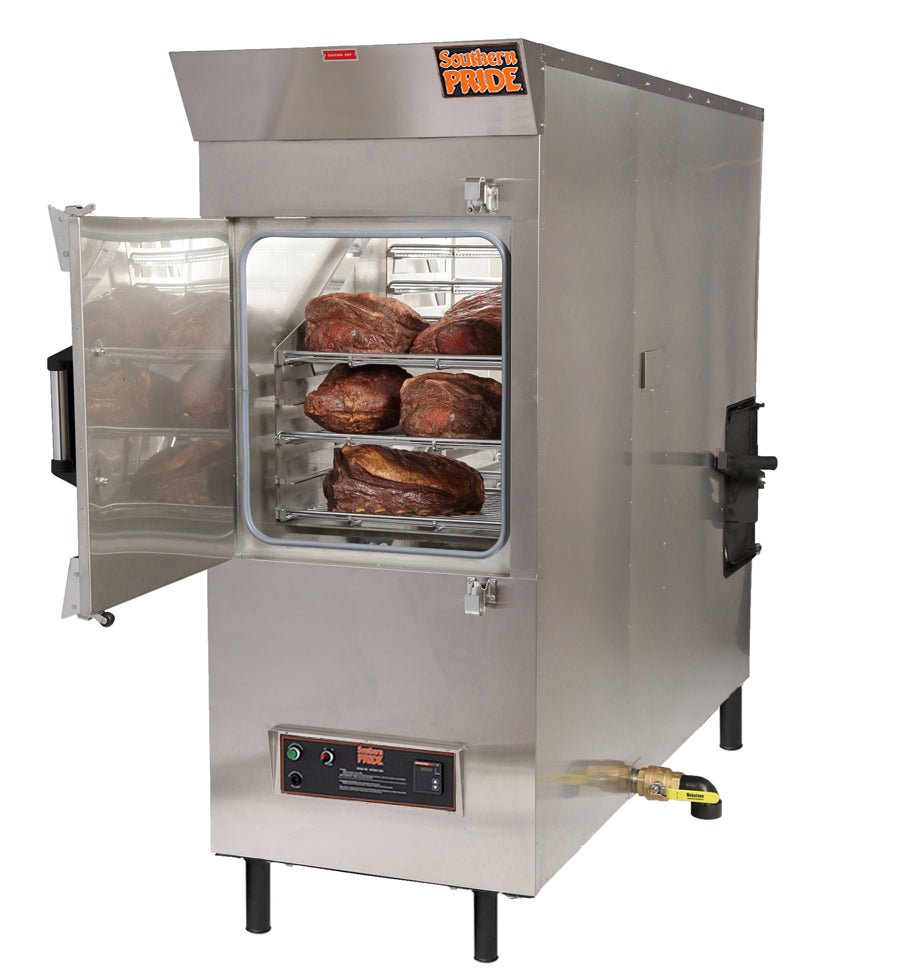

The smoker comes standard with (4), 5-tier rack hangers that hold a maximum of (20), 18" x 22" (457 x 559mm) nickel chrome plated product racks with 3 1/2" (89mm) spacing.
Manual digital control panel
The standard digital thermostat allows for cook temperature selection between 140° to 325°F (60° to 163°C), and will maintain consistent temperature throughout the cook cycle.
The rotisserie can be advanced by pressing and holding the rotisserie advance button, or stepping on the rotisserie foot pedal for hands-free operation.
The smoker exterior is stainless steel ensuring easy cleaning and decades of trouble-free use.
The convection fan access door allows the convection fan blade to be accessed from the outside of the smoker for easy cleaning to ensure proper airflow and to prevent the convection fan motor from failing.
* Natural or LP gas
* 125,000 BTU (37KW) burner
* 1/2" gas inlet (NPT)
* Supply line pressure
Natural - 4.5" W.C. min - 10.0" W.C. max (11.2 - 26.5 mbar)
LP - 11.0" W.C. min - 13.0" W.C. max (27.4 - 32.4 mbar)
* 120 volt AC, 60 hertz, 1-phase, 15 amp wiring w/NEMA 5-15P plug -or-
* 230 volt AC, 50 hertz, 1-phase, 15 amp wiring w/no plug provided
* The smoker must be vented in accordance with the Owner's Manual and the installation must comply with all relevant local and national codes and in a manner acceptable to the authority having jurisdiction.
* Smoker exterior dimensions - 40 1/8"w x 91"d x 77 1/2"h (1019 x 2311 x 1969mm)
* Smoker weight - 1,576 lbs (715kg)
Approximate Smoker Capacities:
Pork Butts (8-10 lbs)(3.6 - 4.5 kg) each......72 pieces
St. Louis Ribs (2.75 lbs)(1.2kg) each...........80 pieces
Whole Chicken (3-4 lbs)(1.4 - 1.8 kg) each..96 pieces
Beef Brisket (12-15 lbs)(5.4 - 6.8 kg) each..24 pieces
Capacities will vary based on product specifications and loading method.
