Converting Old Style Black Hood Relay to New Style Socketed Relays

October 30, 2024 | By Tommy Fontenot

Tommy FontenotOwner and Founder, Tommy's Food Service25+ years in commercial BBQ equipment distribution. Authorized Southern Pride dealer since 2001.

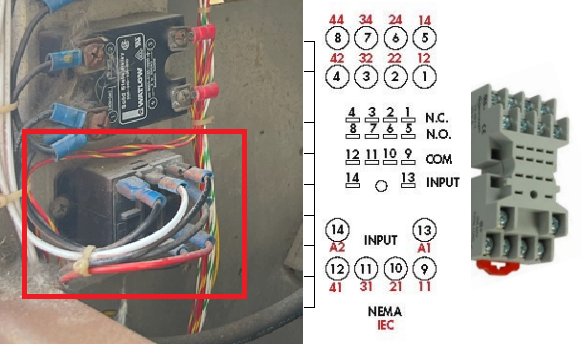

To convert an old style black coil relay that was used for powering hood or exhaust systems should be wired as follows.

The current service bulletin SP2020-001 does not cover this conversion.

Common goes on 12

Coil on 13 and 14

Red wire goes on 8

Black wire goes on 4
