Common Symptoms of a Failing Air Foot Pedal on a Southern Pride Smoker

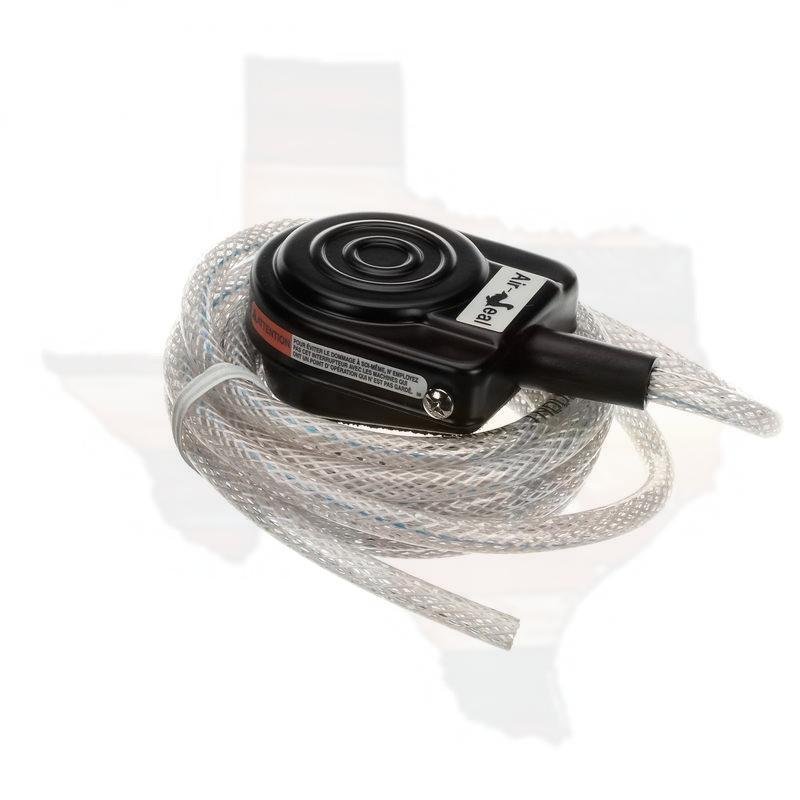

The air foot pedal on a Southern Pride Smoker is a simple but critical component. It operates as an air bladder connected to a hose, which creates air pressure when depressed to activate the rotisserie. Because it is a pneumatic (air-powered) system rather than electrical, most problems are related to air leaks, hose issues, or loss of pressure.
Below are the most common symptoms and what they typically indicate.
1. Unit Rotates Briefly, Then Stops
Symptom:
When you press the foot pedal, the compressed unit begins to rotate normally for a few seconds, then stops. If you release the pedal for a moment and press it again, it works briefly before stopping again.
What This Usually Means:
This is typically a sign of an air leak or loss of pressure somewhere in the pedal or hose assembly. The system builds enough pressure to start the rotation, but it cannot maintain sufficient pressure to keep the unit running continuously.
Common causes include:
-
A small leak in the air bladder
-
A pinhole or crack in the hose
-
An expanded or worn hose end that no longer seals properly
-
Loose connections
Because the system depends entirely on maintaining air pressure, even a small leak can cause intermittent operation.
2. Inconsistent or Weak Activation
Symptom:
The unit may respond weakly, operate inconsistently, or require extra force on the pedal to function.
What This Usually Means:
This can indicate:
-
Air escaping from a damaged bladder
-
Hose deterioration
-
A poor seal at the hose connection
-
Internal hose expansion reducing vacuum strength
Over time, repeated compression can cause the hose material to soften and expand, especially at the connection point. This expansion can create a poor vacuum seal, reducing system efficiency.
3. Audible Air Leaks
Symptom:
You may hear hissing when pressing or holding the pedal.
What This Usually Means:
An audible leak typically points to a puncture, crack, or weakened seam in the bladder or hose.
How to Test the Foot Pedal for Leaks
Since the air foot pedal is simply an air bladder with a hose, testing it is straightforward.
Leak Test Procedure:
-
Disconnect the pedal if necessary.
-
Hold your thumb firmly over the end of the hose to seal it.
-
Submerge the entire pedal and hose in water.
-
Squeeze the bladder.
If you see air bubbles, there is a leak in the bladder or hose that needs to be addressed.
Even small bubbles indicate pressure loss significant enough to cause operational problems.
Simple Fix: Trim the Hose
If no obvious punctures are found, the issue may be hose expansion at the end connection.
Over time, the end of the hose can stretch slightly, preventing a proper seal and causing a weak vacuum. A simple solution is:
-
Cut approximately 1 inch off the end of the hose.
-
Reattach it securely.
This can restore a tight seal and improve air pressure retention.
When Replacement Is Necessary
If:
-
The bladder shows visible cracking
-
Leak points are present
-
The hose is brittle or heavily worn
-
Trimming the hose does not resolve the issue
Then replacing the foot pedal assembly is typically the best solution.
Summary
The most common symptom of a failing Southern Pride Smoker air foot pedal is brief rotation followed by stopping, especially when it temporarily works again after releasing and reapplying pressure. This almost always points to an air leak or pressure loss within the bladder or hose.
Fortunately, diagnosis is simple using a water submersion test, and in many cases, trimming the hose can restore proper operation without requiring full replacement.
Regular inspection of the hose and bladder can help prevent downtime and keep your smoker operating smoothly.
