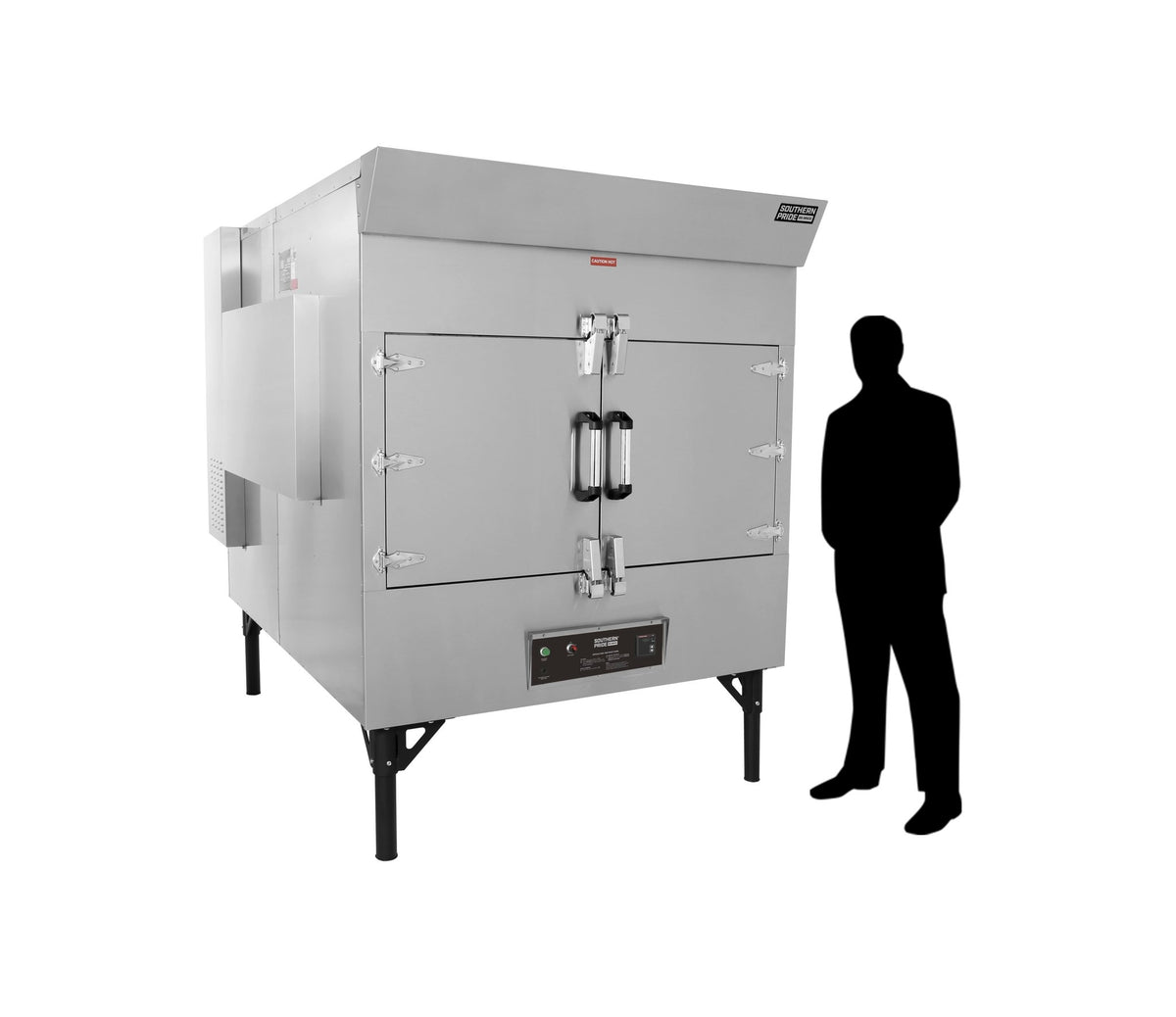

SPK 700 Rotisserie Not Spinning During Normal Operation
If you're experiencing issues with your SPK 700 equipped with a CV thermostat where the rotisserie spins when you press the advance button but fails to rotate during normal cooking operation, you're likely dealing with a faulty contact block. This is a common issue that can be diagnosed and resolved with proper troubleshooting techniques.
Understanding the Problem
The symptoms are clear and specific: when you close the door on your SPK 700, the CV thermostat powers on and all systems appear to function normally, except the rotisserie remains stationary. However, when you manually activate the rotisserie using the advance button, it spins without issue.
This behavior pattern points to a specific component failure rather than a motor or mechanical problem. Since the rotisserie motor operates correctly when manually activated, the issue lies in the control circuit that manages automatic rotation during the cooking cycle.
Root Cause: Normally Closed Contact Block
The most likely culprit is the normally closed contact block on the rotisserie advance. This component is responsible for completing the electrical circuit that allows the rotisserie to operate automatically when the smoker is in normal cooking mode.
When this contact block fails, it interrupts the power supply to the rotisserie motor during normal operation, while still allowing the advance button to function through its separate circuit path. This explains why manual operation works but automatic rotation doesn't.
Testing the Contact Block
To properly diagnose this issue, you'll need to test the contact block with the machine powered on. Here's the step-by-step testing procedure:
Required Tools
- Digital multimeter
- Proper safety equipment
- Insulated test leads
Testing Procedure
- Ensure the machine is powered on and in normal operating mode
- Locate the rotisserie advance normal closed contact block in the control panel
- Test both terminals of the contact block to case ground for 120 volts
- Check each side individually - you should have 120 volts on both terminals if the contact block is functioning properly
- Compare readings - if you only have voltage on one side, the contact block has failed
A properly functioning contact block will show 120 volts on both terminals when tested to case ground. If you're only getting voltage on one terminal, this confirms the normally closed contact block is the source of your problem.
Diagnostic Summary
| Symptom | Expected Result | Failed Component Result |
|---|---|---|
| Manual advance button test | Rotisserie spins | Rotisserie spins (✓) |
| Normal operation test | Rotisserie spins automatically | Rotisserie doesn't spin (✗) |
| Voltage test - Terminal 1 | 120V to ground | 120V to ground (✓) |
| Voltage test - Terminal 2 | 120V to ground | 0V to ground (✗) |
Next Steps After Diagnosis
Once you've confirmed the normally closed contact block is faulty through voltage testing, replacement is typically the most reliable solution. The contact block is a critical component in the rotisserie control circuit, and partial failures often lead to complete failure if not addressed promptly.
Important safety note: Always ensure the unit is properly locked out and tagged out before attempting any repairs or component replacement. Work with qualified electrical technicians when dealing with 120V circuits.
Prevention and Maintenance
Regular inspection of control components can help prevent unexpected failures during busy service periods. Contact blocks are electromechanical components that experience wear over time, especially in the demanding environment of commercial BBQ operations.
Consider implementing a preventive maintenance schedule that includes periodic testing of control circuits, particularly for high-use components like the rotisserie advance system on your SPK 700.
